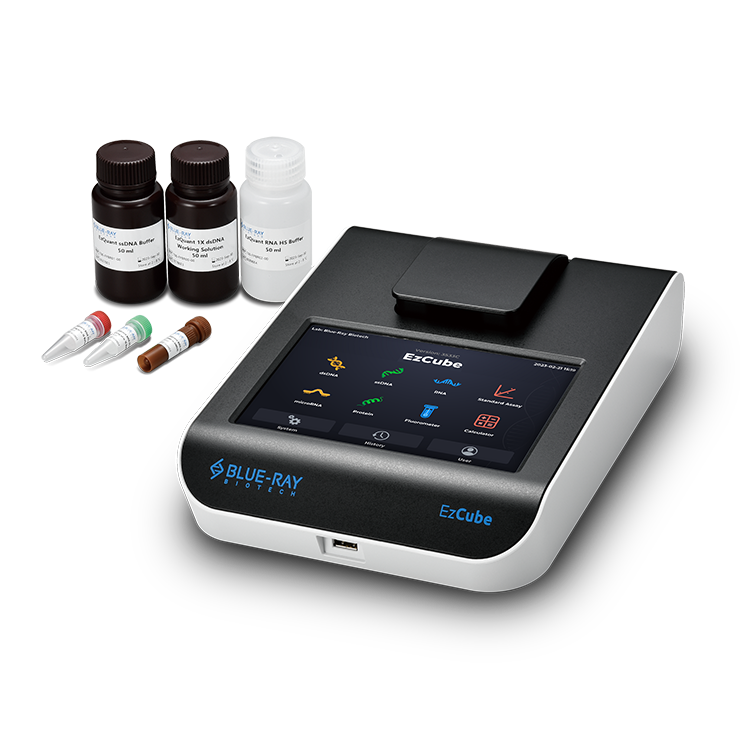

EzCube螢光定量儀

• Dynamic Range
• 5 orders of magnitude

• Light Sources

• Blue LED (max ~480 nm)

  Red LED (max ~630 nm)

  Green LED (max ~535 nm)

• Excitation Filters

• Blue (430 - 495 nm)

  Red (600 - 645 nm)

  Green (490 - 535 nm)

• Emission Filters

• Blue (510 - 580 nm)

  Red (665 - 720 nm)
  Green (564 - 650 nm)

• Detectors
• Photodiodes; measurement capability from 320 -1,100 nm

• Tube Type
• 0.5 ml polypropylene thin wall PCR tubes

• Operating System
• Custom Linux based OS

• Display
• 7” touch screen, 1,280*800 TFT-LCD

• Connectivity
• USB-A port x2 (Data output)

• Dimensions (W x D x H)
• 196 mm x 248 mm x 68 mm (7.7 x 9.8 x 3.4 in.)

• Weight
• 1 kg (2.2 lb.)

• Glove Compatibility
• All common lab gloves

• Internal Storage
• 32 GB flash memory

• Operating Voltage

• Input: AC 100 - 240 V, 50/60 Hz;

  Output: DC 12 V, 3 A

• Certifications
• CE

* Specifications are subject to change without prior notice.
