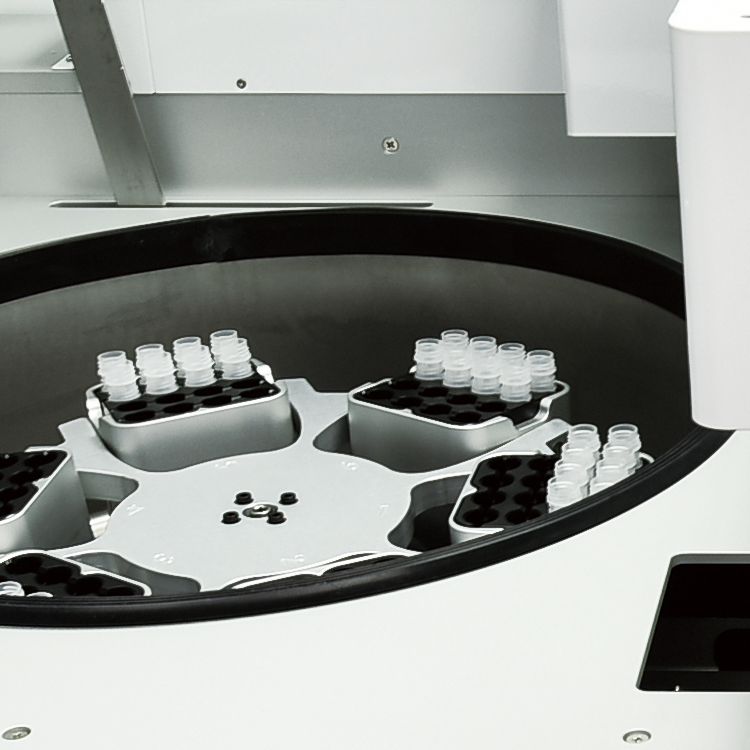

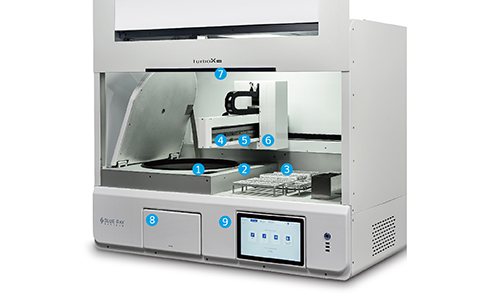

(1) Integrated 48 throughput centrifuge
(2) 48 standard samples or 12 large volume samples

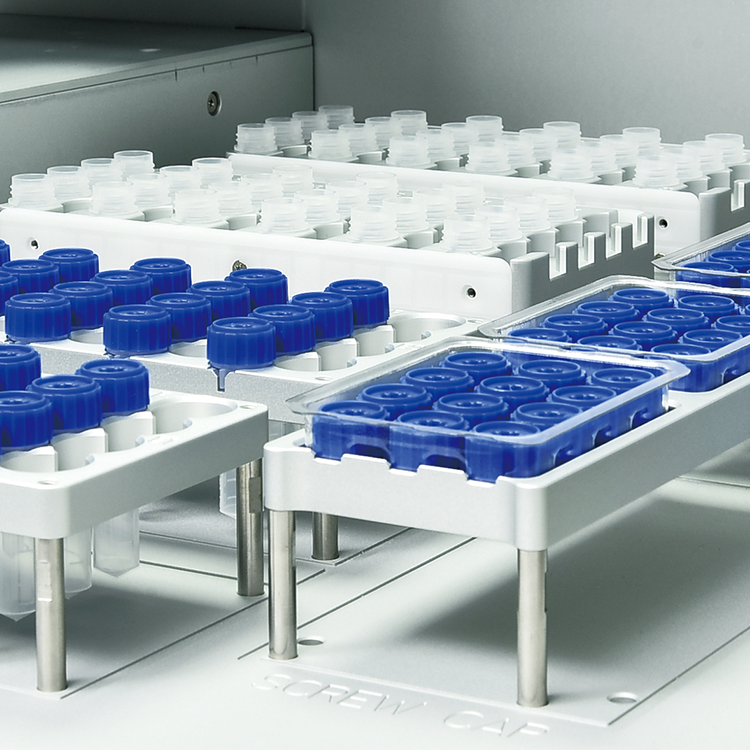

(3) Compact thermal mixer

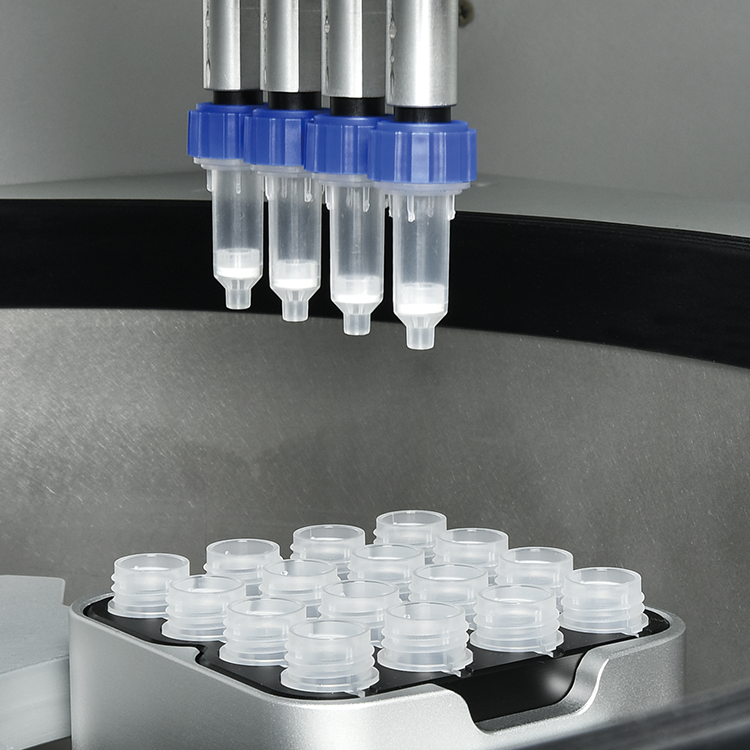

(4) Innovative decapper module
(5) Error-free self-monitoring

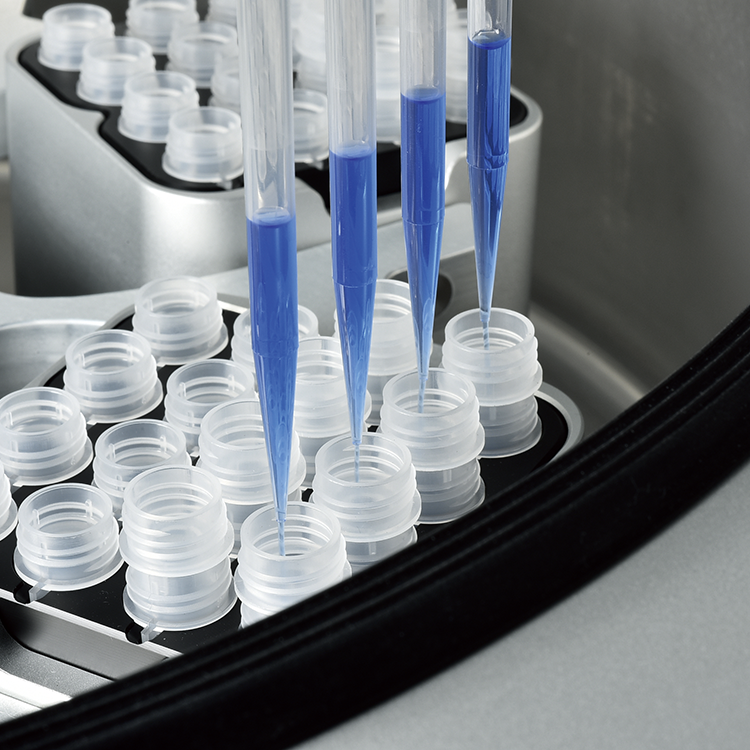

(6) Automated pipetting system
(7) UV decontamination
(8) Waste management system
(9) Guided step-by-step procedures with a user-friendly interface

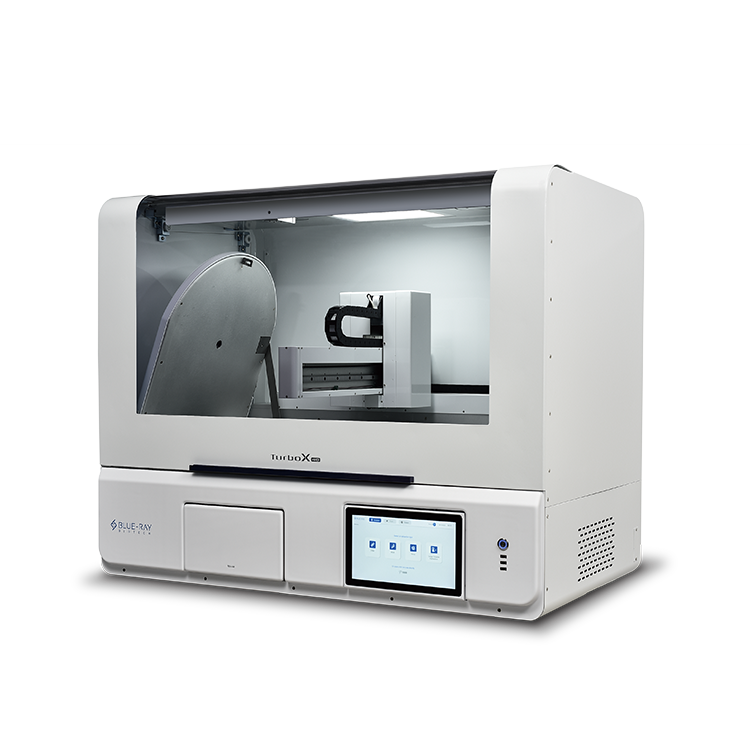

TurboX 48 Automated Nucleic Acid Extraction System
Your Familiar Way to Best Extraction
TurboX 48 is the first automated nucleic acid extraction system to integrate a 48-high-throughput centrifuge, making spin column purification possible. It can even handle large 5-ml samples while ensuring high-quality results. TurboX 48 has been tailored for demanding applications, especially RNA, as well as the handling of low-concentration nucleic acids like cfDNA and ctDNA. Combined with our patented decapping automation technology, TurboX 48 streamlines sample transitions, offering high performance and precise automation. Now, you can devote more time to your work!
Features and Benefits
Features Highlights
Extreme Purity and High Yield
Leveraging the proven spin column method, TurboX 48 ensures consistently pure DNA/RNA elution without inhibitor carry-over.Unmatched High Throughput
TurboX 48 processes up to 4 channels at once, achieving an impressive throughput of 48 standard samples or 12 large volume samples up to 5 ml.Efficient Workflow
Experience a streamlined workflow with dedicated reagent kits. Plus, a quick setup that can be done in 5 min, thanks to the intuitive guide.Highly Concentrated Eluate
The integrated centrifuge in the TurboX 48 ensures optimal elution buffer recovery even from a volume of 30 µl, maintaining consistent recovery for reliable results.Precision in Sample and Column Manipulation
Our patented decapping technology automates column and microcentrifuge tube transfer. This, combined with the automated pipetting system, significantly reduces human error and boosts throughput.
Proven Performance

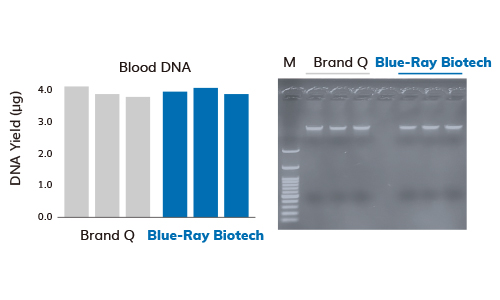

Our Blood DNA Extraction Kit matches the benchmark model for DNA yield.
Genomic DNA was extracted manually from 200 µl of blood using brand Q and the TurboX 48 system with the Blue-Ray Biotech Blood DNA Kit.

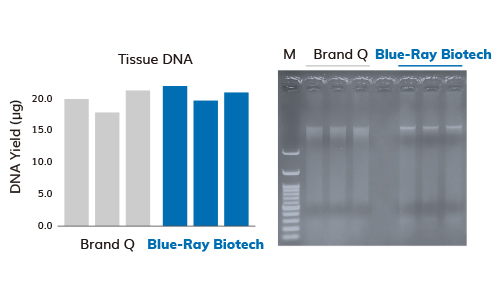

Our Tissue DNA Extraction Kit offers higher DNA quantity and clear, smear-free gel images.
Shrimp tissue (25 mg/sample) was extracted manually using brand Q and the TurboX 48 system with the Blue-Ray Biotech Tissue DNA Kit.
Applications
Sample Type
- Cells and Tissues
- FFPE
- cfDNA (Liquid Biopsy)
Featured Applications
- NGS
- Microarray
- NIPT / Oncology
Specifications
General
- Throughput
-
2 - 48 sample for standard volume (< 500 µl)
2 - 12 sample for large volume (> 1,000 µl)
- Sample Volume
- 200 to 5,000 µl
- Exaction Principle
- Silica-Membrane Column
- Dimensions (W x D x H)
- 1,210 mm x 725 mm x 1,060 mm (1,550 mm with door open)
- Weight
- 150 kg
- Power
- AC 220 V, 50/60 Hz, 1,500 W
- Display Interface
- 10.6” TFT LCD with touch screen
- UV LED
-
UVA 360 - 410 nm
UVC 270 - 285 nm
- Certifications
- CE
Centrifuge
- Rotor Type
- 6 swinging-bucket
- Speed
- Max. 3,500 rpm
- Chamber Heating
- Up to 70 °C
Liquid Handling System
- Channel
- 4 channels
- Volume
- 20 µl -1,000 µl
- Accuracy
- 20 µl: < 10%; 1,000 µl: < 1%
Thermal Mixer
- Mixing Speed
- Up to 900 rpm
- Temperature
- RT - 60 °C
- Ramp Rate
- < 5 minutes from ambient temperature to 55 °C (±3 °C)
Decapper System
- Channel
- 4 channels
* Specifications are subject to change without prior notice.
Ordering
- BRNI-0048
- TurboX 48 Automated Nucleic Acid Extraction System
- BRNK-D001
- Blood DNA Kit
- BRNK-D002
- Tissue / Cell DNA Kit
- BRNK-D003
- FFPE DNA Kit
- BRNK-R001
- Blood RNA Kit
- BRNK-R002
- Tissue / Cell RNA Kit
- BRNK-L001
- Circulating DNA (5 ml) Kit
