Three Fluorescent Channels
Expand your application range with triple-channel detection.
Light Sources
- Blue LED (max ~480 nm)
- Red LED (max ~630 nm)
- Green LED (max ~535 nm)

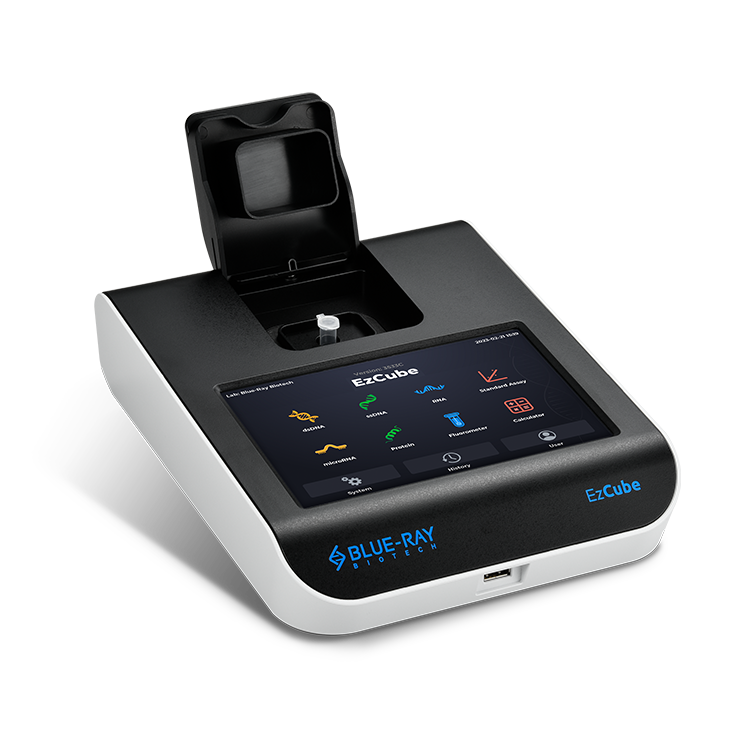

EzCube Fluorometer
Illuminating Precision with Triple Fluorescent Channels
EzCube Fluorometer features triple fluorescent channels and offers high-sensitivity and specific quantification of nucleic acids and proteins. It accurately measures low concentration samples as small as 1 µl, making it ideal for demanding applications, including NGS. Combined with dedicated EzQuant quantification assays, an intuitive touchscreen and USB connectivity, EzCube simplifies your precision quantification processes and makes them easy.
Features and Benefits
Features Highlights
Enhanced Accuracy and Sensitivity
Quantify low concentrations of DNA, RNA and protein with just 1 µl in seconds, more sensitive than UV absorbance measurements.
Three Fluoresent Channels
Expand your application range with triple-channel detection.

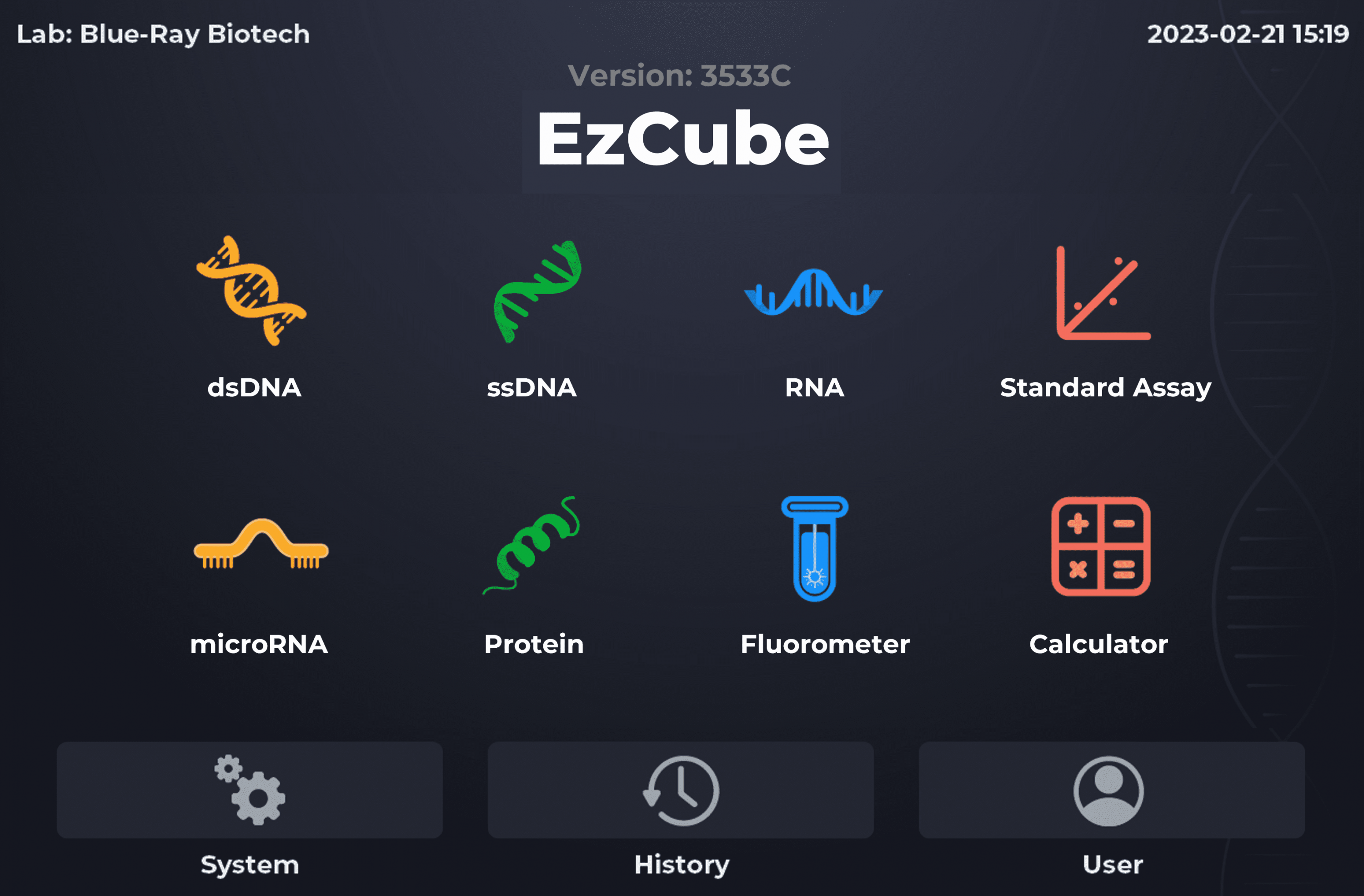

Easy Operation
Seamlessly control your workflow with an intuitive 7-inch touchscreen and a built-in reagent calculator.
Flexible Data Management
USB connectivity for easy data export.
High Compatibility with Quantification Assays
EzCube fluorometer works with EzQuant quantification assays and other commonly used options.
Easy Operation
Seamlessly control your workflow with an intuitive 7-inch touchscreen and a built-in reagent calculator.
High Compatibility with Quantification Assays
EzCube fluorometer works with EzQuant quantification assays and other commonly used options.
- 1X dsDNA HS (High-Sensitivity)
- ssDNA
- RNA HS (High-Sensitivity)
Quantification Model Comparison
Specifications
- Dynamic Range
- 5 orders of magnitude
- Light Sources
-
Blue LED (max ~480 nm)
Red LED (max ~630 nm)
Green LED (max ~535 nm)
- Excitation Filters
-
Blue (430 - 495 nm)
Red (600 - 645 nm)
Green (490 - 535 nm)
- Emission Filters
-
Blue (510 - 580 nm)
Red (665 - 720 nm)
Green (564 - 650 nm)
- Detectors
- Photodiodes; measurement capability from 320 -1,100 nm
- Tube Type
- 0.5 ml polypropylene thin wall PCR tubes
- Operating System
- Custom Linux based OS
- Display
- 7” touch screen, 1,280*800 TFT-LCD
- Connectivity
- USB-A port x2 (Data output)
- Dimensions (W x D x H)
- 196 mm x 248 mm x 68 mm (7.7 x 9.8 x 3.4 in.)
- Weight
- 1 kg (2.2 lb.)
- Glove Compatibility
- All common lab gloves
- Internal Storage
- 32 GB flash memory
- Operating Voltage
-
Input: AC 100 - 240 V, 50/60 Hz;
Output: DC 12 V, 3 A
- Certifications
- CE
* Specifications are subject to change without prior notice.
Ordering
- BRFP-0300
- EzCube Fluorometer (Blue, Red & Green)
- BRQK011-010000
(T00-FPBR00-00) - EzQuant 1X dsDNA HS Quantification Kit (100 Assays)
- BRQK011-050000
(T00-FPBR04-00) - EzQuant 1X dsDNA HS Quantification Kit (500 Assays)
- BRQK020-010000
(T00-FPBR01-00) - EzQuant ssDNA Quantification Kit (100 Assays)
- BRQK031-010000
(T00-FPBR02-00) - EzQuant RNA HS Quantification Kit (100 Assays)
- BRQK100-050000
(T00-FPBR03-00) - 0.5 ml Thin Wall PCR Tube
Resources
Flyer/Brochure
EzCube Brochure
Flyer/Brochure
Quantification Family Brochure
Manual
EzCube User Manual
Software
EzCube Standard Assay Template (For generating the factors used in the custom assay.)
Technical article
Nucleic Acid Quantification Methods: A Comprehensive Guide
Technical article
Spectrophotometers vs. Fluorometers: Choosing the Right Tool for DNA/RNA Quantification
FAQ
-
Can I adjust the LED light intensity?
The LED light intensity is preset and cannot be manually adjusted.
-
I want to export the data from the EzCube, but I can't find it on the PC.
Please note that EzCube only supports USB drives formatted in FAT or FAT32. If the USB drive is not in the correct format, the device may not recognize it. Make sure to check and format your USB drive accordingly before use.
-
Does EzCube need routine maintenance?
To ensure optimal performance, we recommend performing an annual check of the light source using the EzCube Verification Kit (P/N: T01-FPBR01-00).
-
Can I perform the custom assay?
Yes! You can create your own custom assay through the “Standard Assay” application on the EzCube.
-
What kinds of tubes can be used with the EzCube?
The EzCube is designed to work with 0.5 ml thin-walled PCR tubes made of polypropylene (PP). For best compatibility, we recommend using the 0.5 ml Thin Wall PCR Tube (P/N: T00-FPBR03-00).
-
What kinds of quantification reagents can be used with the EzCube?
The EzCube Fluorometer is an open system that's fully compatible with EzQuant Quantification Assays as well as other commonly used DNA/RNA quantification kits. This gives you the flexibility to choose reagents that best suit your workflow.
